LC -Mini Toroidal Chokes 1:1, Low cost

LC Series surface mount toroidal inductors are designed for use in applications where energy storage is required for maintenance of a highly stable inductance when a rapid change in load current occurs. These inductors are excellent for filtering high frequency signals while supporting a substantial DC current as well as for AC ripple, switch mode power supplies and for use with DC-DC Converters.


Features

  • Operating frequency to 1 MHz
  • High energy storage with minimum saturation
  • High stability from no load to full load
  • Pick and place compatible
  • Designed as 1:1 Coupled Inductor (Series or Parallel) or as 1:1 Isolation Transformer
  • Manufactured in ISO-9001 approved facility
  • Test voltage between windings: 500 Vrms
  • Operating temperature range: -40°C to 85°C
  • Test frequency: Inductance measured @ 10kHz/10 mV


Applications

  • DC-DC Converters
  • Common Mode Filter
  • Computer Note Books
  • Pulse Modulation Switching Regulators
  • Step-up, Step-down, Inverting or dual output
  • Filtering Battery Powered Equipment

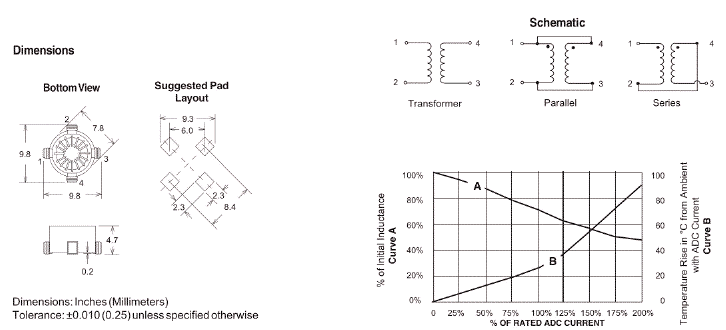

Mechanical Layout

Electrical Specifications at 25°C ambient

Part Number Parallel Connected Series Connected Energy Storage
(µJ)
Full Load Current (ADC) LO (µH)
± 15%
No load		 DCR
mOhm		 Full Load Current
(ADC)		 LO (µH)
± 15%
No Load		 DCR
mOhm
 LC1-3.00-2.2
 LC1-2.10-4.7
 LC1-1.40-10		 3.00
2.10
1.40		 2.2
4.7
10		 9
16
37		 1.50
1.05
0.70		 8.8
18.8
40		 36
64
148		 7.0
7.2
7.2
 LC1-1.10-15
 LC1-0.92-22
 LC1-0.76-33		 1.10
0.92
0.76		 15
22
33		 58
86
133		 0.55
0.46
0.38		 60
88
132		 232
344
532		 7.0
7.1
7.2
 LC1-0.64-47
 LC1-0.54-68
 LC1-0.44-100		 0.64
0.54
0.44		 47
68
100		 205
307
376		 0.32
0.27
0.22		 188
272
400		 820
1,228
1,504		 7.1
7.2
7.2
 LC1-0.36-150
 LC1-0.30-220		 0.36
0.30		 150
220		 719
866		 0.18
0.15		 600
880		 2,876
3,464		 7.2
7.3

We can assist in the design of other inductance values and sizes.

Notes:
1. L(µH): Inductance is tested at 10 mV and 10kHz.
2. The µJoule rating (1⁄2LI2) is the ability of the inductor to store energy.


Mechanical Layout

Mechanical Layout
