U Port TH 1xInterface 4KV


Features

  • matched to Infineon´s PEB2095 & PEB20950 and AMD´s AM2095 & AM20950 chipsets
  • excellent and consistent balance between windings
  • compact sizes in through-hole and surface mount packages
  • complies fully with all international standards for U-Interface
  • manufactured in ISO-9001 approved facility
  • operating temperature: -40° to +85°C
   U Port TH 1xInterface 4KV Transformers

Electrical Specifications @ 25°C   Turns Ratio: Bold = IC Side Windings


UPO TH Interface Transformers

Complies with Basic Insulation Level EN60950, UL1950 and UL1459

Part Number Turns Ratio
±1%		 LP
(mH Min.)		 ^IDC
(mA)		 LL
(µH)		 CC
(pF Max.)		 DCR
(Ohms per winding)		 VP
(Vrms)
Pri Sec
UF-130A 01:02.5 1.7 75 6 100 0.8 2 2,500
UV-130A 01:02.5 1.7 75 6 100 0.8 2 2,500


Test Conditions:
Inductance:   Line side windings in series - measurement @ 10kHz, 100mVrms
Leakage Inductance:   Line side windings in series, IC side windings short circuited - measurement @ 100kHz, 100mVrms
Coupling Capacitance:   IC side winding to Line side windings in parallel @ 10kHz, 100mVrms
Test Voltage:   2.5kV for 1 sec. - Line side windings in series to IC winding
0.5kV for 2 sec. - Line side winding to winding

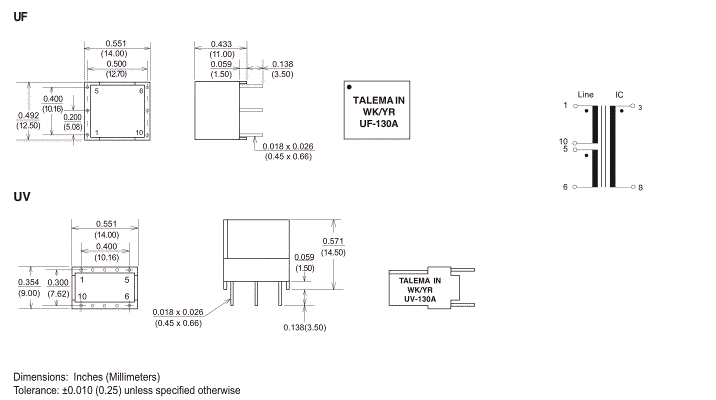

Dimensions & Schematic

Dimensions & Schematic - Pins
