VDSL Miniature SMD Transformer


Features

  • Complies with requirements of IEC60950, EN60950, UL60950/CSA60950 and AS/NZS60950
  • Low profile, light weight SMD packages for pick and place compatibility while providing consistent and reliable co-planarity
  • Excellent quality at extremely competitive price due to high volume production
  • Manufactured in ISO-9001 approved facility
   VDSL Miniature SMD Transformers


Electrical Specifications  @ 25°C


Minimum Isolation Voltage: 1,500Vrms for 1 minute
Operating Temperature Range: -40° to +85°C
Storage Temperature: -25°C to +125°C
Supplementary insulation for a primary circuit at 250Vrms working voltage		   Inductance & Leakage measured at 100kHz, 10mVAc
Standard Packaging: Tape & Reel
Weight: 2.5 g


VDSL Transformer

Part
Number		 OCL Turns Ratio
±2%		 DCR
(mOhms) Max.		 Line
Impedance		 Leakage Inductance VP
(Vrms)
(µH Min.) Pins
82312 95
430
125
95		 16-14
11-9
3-1
6-8		 (16-14):(1-3):(15-13) = 9:10:10
(11-9):(6-8):(10-12 ) = 19:9:9		 350 100 Ohm  0,2µH max., 16-14 (s.c.15+1, 3 +13)
0,8µH max., 11-9 (s.c.12+8, 6+10)		 1.500

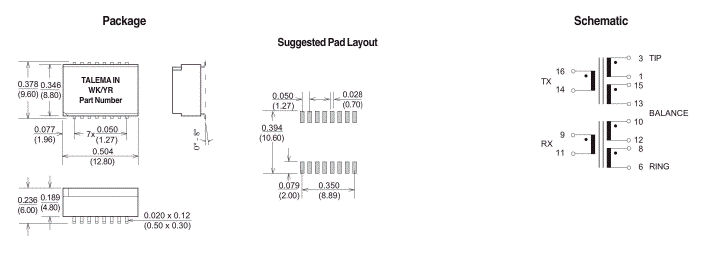

Dimensions & Schematics

Dimensions & Schematic - Pins
