AEP1000 -Centillium Chipsets


Features

  • complies with ANSI and ETSI requirements
  • matched to Centillium CT-L21SC08, CT-L41SC04, CT-L50SC04, CT-L50ST81 & CR-L-10AT01-H chipsets
  • very low THD
  • 1,500V minimum isolation
  • all materials approved to UL-94V-0
  • excellent quality at competitive price due to high volume production
  • manufactured in ISO-9001 approved facility
   AEP1000 - Centillium Chipsets


Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part
Number		 Package IC Driver Turns
Ratio
±2%
Line : IC		 LP
(µH)		 LL
(µH)
Max.		 CWW
(pF)
Max.		 DCR
(Ohms)
Max.
Line : IC		 THD
(Linearity)
Typical		 Longitudinal
Balance
Min.		 Insertion
Loss
Max.		 Frequency
Response
Max.		 Isolation
Voltage
(Vrms)
 AEP1000-T TH CT-L21SC08 CO
CT-L41SC04 CO		 1 : 1 462
±10%		 5 60 1,30 / 1,30 -67dB
10kHz		 -50dB
10kHz-1,1MHz		 0,5dB
100kHz		 1,0dB
30kHz-1,1MHz		 1.500
 AEP1000-S SMD
 AEP1010-T TH CT-L50SC04 CO/CPE
CT-L50ST81 CO/CPE		 1,8 : 1 462
±10%		 10 70 1,30 / 0,90 -67dB
10kHz		 -50dB
10kHz-1,1MHz		 0,5dB
100kHz		 1,0dB
30kHz-1,1MHz
 AEP1010-S SMD
 AEP1020-S SMD CT-L10AT01-1T 1 : 1.1 364
±5%		 11 60 2,10 / 2,20 -67dB
10kHz		 -45dB
20kHz-1,1MHz		 1,5dB
50kHz		 1,0dB
40kHz-1,1MHz

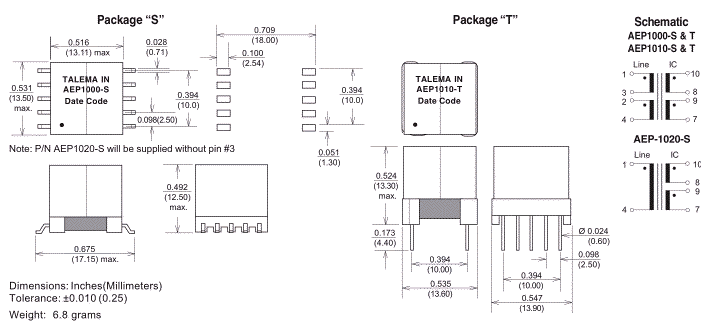

Dimensions & Schematic - Pins
