AEP300 -Motorola Chipsets


Features

  • complies with ANSI and ETSI requirements
  • matched to Motorola´s MC03AX1456RT, MC03AX1456, MC143460 & MC143462 chipsets
  • very low THD
  • 1,500V minimum isolation
  • all material approved to UL94V-0
  • excellent quality at competitive price due to high volume production
  • manufactured in ISO-9001 approved facility
   AEP300 - Motorola Chipsets


Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part
Number		 Package IC Driver Turns
Ratio
±2%
Line : IC		 LP
(µH)
±5%		 LL
(µH)
Max.		 CWW
(pF)
Max.		 DCR
(Ohms)
Max.
Line / IC		 THD (Linearity) Typical Longitudinal Balance
Min.		 Insertion Loss
Max.		 Frequency Response
Max.		 Isolation Voltage (Vrms)
 AEP300-T TH MC03ZX1456RT
CPE		 1 : 1,8 3,96 25 50 4,40 / 8,00 -80dB
30kHz		 -40dB
25kHz-1MHz		 0,5dB
100kHz		 0,5dB
30kHz-1,1MHz		 1.500
 AEP300-S SMD
 AEP310-T TH MC03AX1456
CO & CPE		 1,2 : 1 3,96 15 50 4,20 / 3,80 -80dB
100kHz		 -40dB
25kHz-1MHz		 0,5dB
100kHz		 0,5dB
30kHz-1,1MHz
 AEP310-S SMD
 AEP320-T TH MC 143460/462 1,2 : 1 3,96 15 50 2,90 / 2,50 -80dB
100kHz		 -40dB
25kHz-1MHz		 0,5dB
100kHz		 0,5dB
30kHz-1,1MHz
 AEP320-S SMD
 AEP330-T TH MCOSAX1456RT
CPE		 1 : 1,8 3,96 25 60 4,40 / 8,00 -80dB
30kHz		 -40dB
25kHz-1MHz		 0,5dB
100kHz		 0,5dB
30kHz-1,1MHz
 AEP330-S SMD

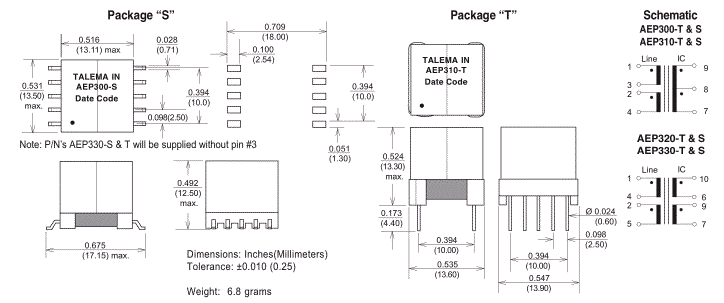

Dimensions & Schematic - Pins
