Current Transformer AC1005, 5A - Low Cost

Low Cost - High Quality - 50/60Hz Current Transformer - Primary Measuring Current 5A


Applications
  • Sensing Overload Current
  • Ground fault detection
  • Metering
  • Analog to Digital Circuits
   Current Transformer AC1005, 5A



Electrical Specifications @ 20°C ambient

Electrical Specifications
 Primary Current   5A nom., 60A max
 Turns Ratio   1000:1 nominal
 Volt per Amp Ratio at 5A
 for 100 ohm load		   0.100 V/A
 Volt per Amp Ratio at 0.5A
 for 100 ohm load		   0.096 V/A
 DC Resistance at 20°C   41.8 ohms
 Dielectric Withstanding Voltage
 (Hi-pot)		   4KVrms

Mechanical Specifications
 Case   Polycarbonate
 Encapsulant   Epoxy
 Flammability   Conforms to UL94-VO
 Terminals   Pins Ø 0.80mm
 Marking   TALEMA
  Date Code (W/Y)
  AC1005
  Dot at start pin
 Approximate Weight   16.3 grams
 Tolerance   ± 0.2mm

Environmental Specifications
 Storage Temperature   -55°C to 130°C
 Insulation Resistance   100 megohms min.

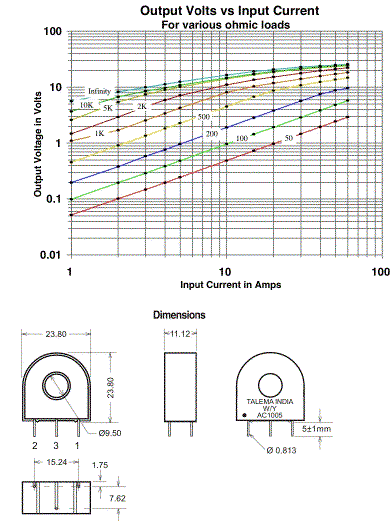

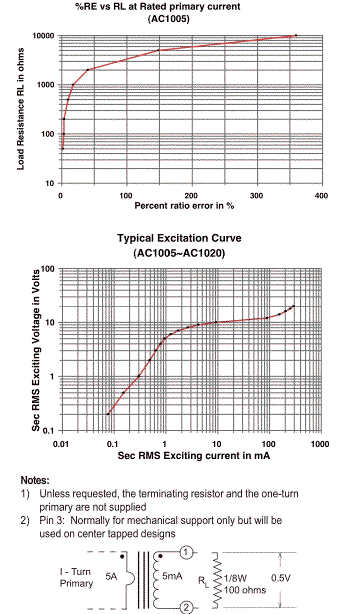

  Output Volt vs Input Current & Dimensions   %RE vs RL at Rated primary current & Excitation Curve
